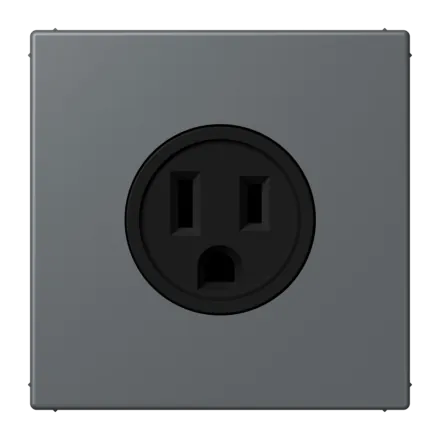

Socket, US standard NEMA, 15 A 125 V ~, screw terminals, without claws, thermoplastic painted, LS series, dark grey 31 15 A, 125 V ~, 5-15R, 2-pin. + E
with screw terminals for rigid and flexible conductors up to 4 mm2 according to US-NEMA
Material: Thermoplastic painted
| Property | Value |
| Number of units: | 1 |
| Color: | other |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 125 V |
| Nominal current: | 15 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | screw terminal |
| With fine fuse: | no |
| Fastening type: | Fastening with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface finish: | matt |
| Device width: | 70 mm |
| Device height: | 70 mm |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
