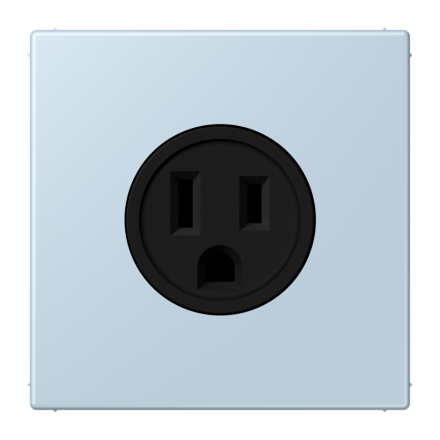

Jung LC521-15208 socket, US standard NEMA, 15 A 125 V ~, screw terminals, without claws, thermoplastic painted, LS series, outremerclair ( LC32022 )

Jung LC521-15208 socket, US standard NEMA, 15 A 125 V ~, screw terminals, without claws, thermoplastic painted, LS series, outremerclair ( LC32022 )

In stock

SKU: 881544

Price on request

€88.02

€0

Overview

Socket, US standard NEMA, 15 A 125 V ~, screw terminals, without claws, thermoplastic painted, LS series, outremerclair 15 A, 125 V ~, 5-15R, 2-pin. + E
with screw terminals for rigid and flexible conductors up to 4 mm2 according to US-NEMA
Material: Thermoplastic, painted

Property	Value
Version:	NEMA
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	2
With signal lamp:	no
With built-in USB power supply:	no
Number of units:	1
Number of phases:	1
Connection type:	Screw terminal
With hinged lid:	no
With increased contact protection:	no
Text field/labeling area:	no
Color:	outremerclair
Transparent:	no
Lockable:	no
Ejection mechanism:	no
With function lighting:	no
With orientation lighting:	no
Overvoltage protection:	no
Residual current protection:	no
With fine fuse:	no
Special power supply:	without special power supply
Installation type:	Flush-mounted
Fastening type:	Fastening with screw
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface finish:	matt
Antibacterial treatment:	no
With on/off switch:	no
With loop-through function:	no
Twisted central insert:	no
Rated current:	15
Rated voltage:	125
Suitable for protection class (IP):	IP20
Device width:	70
Device height:	70
IFTTT support available:	no

Characteristics

HABUS standard NEMA LC32022

Manufacturer

HANLC521-15208

GTIN4011377250659

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70

Device height70

Halogen freeYes

IFTTT support availableNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage125

Rated current15

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

Jung LC521-15208 socket, US standard NEMA, 15 A 125 V ~, screw terminals, without claws, thermoplastic painted, LS series, outremerclair ( LC32022 )
