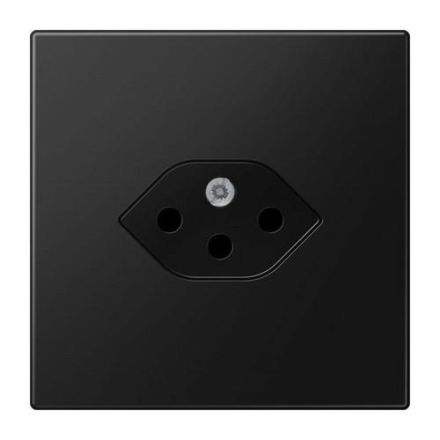

Jung LS1520-13SEVSWM single socket, Swiss standard, type 13, LS series, graphite black matt

Jung LS1520-13SEVSWM single socket, Swiss standard, type 13, LS series, graphite black matt

In stock

SKU: 806831

Price on request

€44.87

€0

Overview

Single socket, Swiss standard, type 13, LS series, graphite black matt 10 A 250 V ~, L + N + PE
with spring terminals for rigid conductors up to 2.5 mm2 in accordance with SEV 1011-1998/IEC 884-1
Installation in device box with dimensions in accordance with DIN 49073
not suitable for installation in surface-mounted caps
(complete with support ring, screw fastening)
Material: painted duroplast

Property	Value
Version:	Swiss standard type 13
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	10 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With Fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	matt
Device width:	70 mm
Device height:	70 mm
With loop-through function:	no
With On/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With Signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorBlack

HABLS1520-13SEVSWM SEV 1-f Type 13 deep

Manufacturer

HANLS1520-13SEVSWM

GTIN4011377205321

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current10A

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
