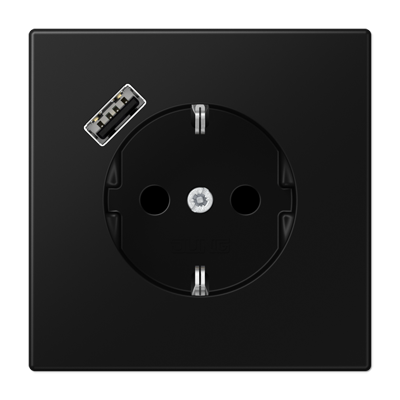

SCHUKO socket 16 A 250 V ~, with USB charger 1 x type A, integrated increased contact protection, SAFETY+, LS series, graphite black matt with integrated increased contact protection (Safety Plus)
with 1 USB socket type A
with quick charge function
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Installation in device box with dimensions according to DIN 49073
Depth of the device box (internal dimension): min. 57 mm
Material: painted thermoplastic
| Property | Value |
| Number of units: | 1 |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface finish: | matt |
| Device width: | 70 mm |
| Device height: | 70 mm |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | yes |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 57 mm |
