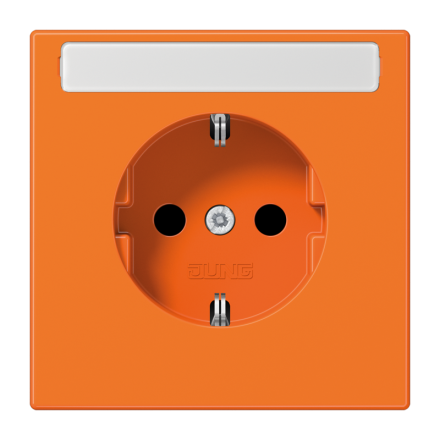

Jung LS1520BFKINAO SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, thermoplastic, LS series, orange (for ZSV)

In stock
SKU: 237381
€13.70
Into a basketIn the basketGo

Overview

SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, thermoplastic, LS series, orange (for ZSV) SCHUKO® socket, orange (for ZSV)
with integrated increased contact protection (Safety Plus)
with label field 9 x 58 mm
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: thermoplastic
Dimensions (W x H): 70 x 70 mm

Property Value
RAL number (similar): 2004
Number of units: 1
Color: orange
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 16 A
Lockable: no
With increased contact protection: yes
With hinged lid: no
Mounting type: Flush-mounted
Text field/labeling area: yes
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: additional safety supply (orange)
Twisted central insert: no
Connection type: Plug terminal
With fine fuse: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface finish: glossy
Device width: 70 mm
Device height: 70 mm
With loop-through function: no
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Transparent: no
Protective contact: yes
Round protective conductor contact: no
Number of active contacts (round): 2
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

HABLS1520BFKINAO
ManufacturerJung
HANLS1520BFKINAO
GTIN4011377158580
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishGlittering
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorOrange
Residual current protectionNo
Suitable for protection class (IP)IP20
Device width70 mm
Device height70 mm
Halogen freeYes
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
RAL number (similar)2004
Protective contactYes
Protective conductor contact roundNo
Special power supplyAdditional safety supply (orange)
Text field/label areaYes
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
