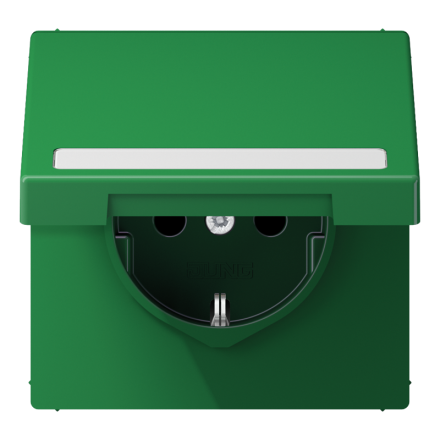

Jung LS1520BFNAKLGN SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, hinged lid, thermoplastic, LS series, green (for SV)

SCHUKO socket, 16 A 250 V ~, with label field, integrated increased contact protection, SAFETY+, hinged lid, thermoplastic, LS series, green (for SV) SCHUKO® socket, green (for SV)
with hinged lid (with return spring)
with label field 9 x 58 mm
with integrated increased contact protection (Safety Plus)
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: Thermoplastic
Dimensions (W x H): 70 x 70 mm
