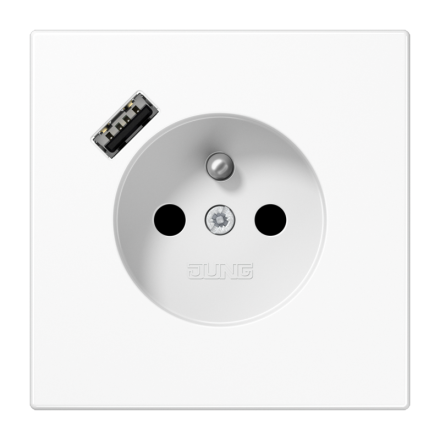

Jung LS1520F-18AWW socket, French/Belgian system 16 A 250 V ~, with USB charger 1 x type A, integrated increased contact protection, SAFETY+, LS series, alpine white

Jung LS1520F-18AWW socket, French/Belgian system 16 A 250 V ~, with USB charger 1 x type A, integrated increased contact protection, SAFETY+, LS series, alpine white

In stock

SKU: 883033

Price on request

€62.88

€0

Overview

Socket, French/Belgian system 16 A 250 V ~, with USB charger 1 x type A, integrated increased contact protection, SAFETY+, LS series, alpine white 2-pole with earthing pin, 16 A 250 V ~
CEE 7/5
with integrated increased contact protection (Safety Plus)
with 1 USB socket type A
with quick charge function
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Installation in device box with dimensions according to DIN 49073
Depth of the device box (internal dimension): min. 57 mm
Material: thermoplastic

Property	Value
RAL number (similar):	9016
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted Central insert:	no
Connection type:	plug-in terminal
With fine fuse:	no
Fastening type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface finish:	glossy
Device width:	70 mm
Device height:	70 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	yes
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	57 mm

Characteristics

ColorWhite

HABFrz/Belg m.USB Type A

Manufacturer

HANLS1520F-18AWW

GTIN4011377185029

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

Min. depth of the device box57 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyYes

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)9016

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
