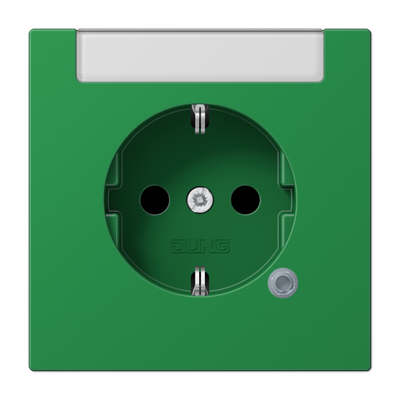

Jung LS1520INAKOGN SCHUKO socket, 16 A 250 V ~, with function display, with label field, integrated increased contact protection, SAFETY+, thermoplastic, LS series, green (f

SCHUKO socket, 16 A 250 V ~, with function display, with label field, integrated increased contact protection, SAFETY+, thermoplastic, LS series, green (f SCHUKO® socket, green (for SV)
with function display (green LED) Item no.: 193-LED GN (according to DIN VDE 0100 Part 710.55.3)
with integrated increased contact protection (Safety Plus)
with integrated label field (spray-tight) 50 x 10 mm
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
including label field carrier Item no.: LS 61 INA BT
When the central plate is removed, the label field carrier remains locked into place on the support ring.
Support ring, claws and claw screws are integrated into the protective measure via a grounding rail.
Function display can be replaced from the front without interrupting the voltage
Material: Thermoplastic
Dimensions (W x H): 70 x 70 mm
