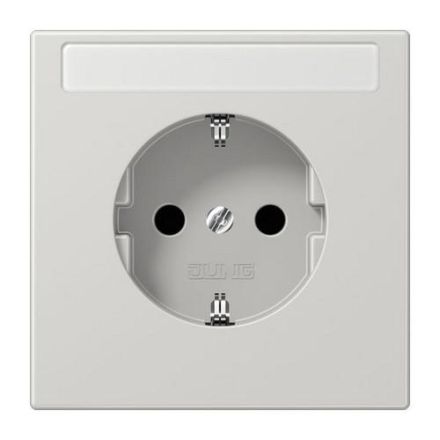

Jung LS1520NKINALG SCHUKO socket, 16 A 250 V ~, without claws, with label field, integrated increased contact protection, SAFETY+, Duroplast, LS series, light grey

Jung LS1520NKINALG SCHUKO socket, 16 A 250 V ~, without claws, with label field, integrated increased contact protection, SAFETY+, Duroplast, LS series, light grey

In stock

SKU: 137786

Price on request

€13.81

€0

Overview

SCHUKO socket, 16 A 250 V ~, without claws, with label field, integrated increased contact protection, SAFETY+, Duroplast, LS series, light gray SCHUKO® socket, light gray
with integrated increased contact protection (Safety Plus)
with label field 9 x 58 mm
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
(screw fastening, without fastening claws)
Support ring is integrated into the protective measure via an earthing rail.
Material: Duroplast
Dimensions (W x H): 70 x 70 mm

Property	Value
RAL number (similar):	7035
Number of units:	1
Color:	gray
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	glossy
Device width:	70 mm
Device height:	70 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANLS1520NKINALG

GTIN4011377063662

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)7035

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
