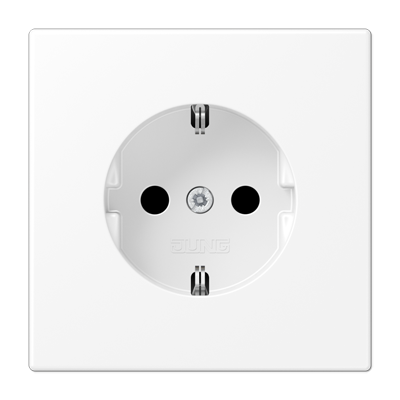

Jung LS1520NWWM SCHUKO socket, 16 A 250 V ~, without claws, LS series, snow white matt

Jung LS1520NWWM SCHUKO socket, 16 A 250 V ~, without claws, LS series, snow white matt

In stock

SKU: 709795

Price on request

€12.43

€0

Overview

SCHUKO socket, 16 A 250 V ~, without claws, LS series, snow white matt SCHUKO® socket, snow white matt
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
(screw fastening, without fastening claws)
Support ring is integrated into the protective measure via an earthing rail.
Material: painted duroplast
Dimensions (W x H): 70 x 70 mm

Property	Value
Number of units:	1
Color:	white
Suitable for Protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Duroplast
Surface finish:	matt
Device width:	70 mm
Device height:	70 mm
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of Phases:	1
Antibacterial treatment:	no

Characteristics

ColorWhite

HABLS1520NWWM without claw

Manufacturer

HANLS1520NWWM

GTIN4011377186422

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
