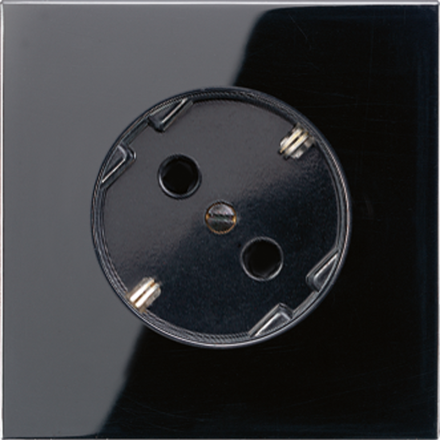

Jung LS520-45SW SCHUKO® socket 45°, 16 A 250 V ~, Duroplast, LS series, black

Jung LS520-45SW SCHUKO® socket 45°, 16 A 250 V ~, Duroplast, LS series, black

In stock

SKU: 137823

Price on request

€10.45

€0

Overview

SCHUKO® socket 45°, 16 A 250 V ~, Duroplast, LS series, black SCHUKO® socket 45°, black
with spring terminals for rigid conductors up to 2.5 mm2
connection terminals according to DIN VDE 0620
particularly suitable for vertical combination of several sockets
without 'fastening claw': item no. with 'N', e.g. ..520-45 N..
Material: Duroplast
Dimensions (W x H): 70 x 70 mm

Property	Value
RAL number (similar):	9005
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	yes
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Duroplast
Surface finish:	glossy
Device width:	70 mm
Device height:	70 mm
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorBlack

Manufacturer

HANLS520-45SW

GTIN4011377019850

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)9005

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertYes

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
