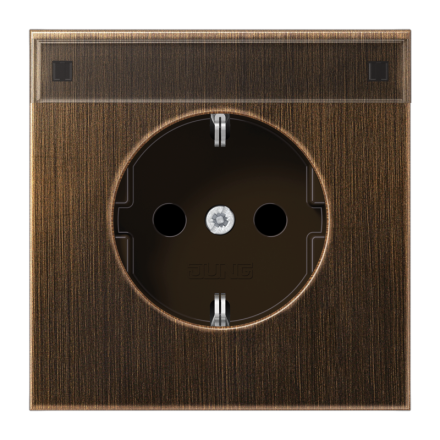

Jung ME1520NAAT SCHUKO socket, 16 A 250 V ~, with label field, brass, LS series, antique brass

In stock
SKU: 138231
€24.76
Into a basketIn the basketGo

Overview

SCHUKO socket, 16 A 250 V ~, with label field, brass, LS series, antique brass SCHUKO® socket, antique brass
with label field 12 x 55 mm
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
Material: brass
Dimensions (W x H): 70 x 70 mm

Property Value
RAL number (similar): 8014
Number of units: 1
Color: Brass
Suitable for protection class (IP): IP20
Rated voltage: 250 V
Rated current: 16 A
Lockable: no
With increased contact protection: no
With hinged lid: no
Mounting type: Flush-mounted
Text field/labeling area: yes
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Connection type: Plug-in terminal
With fine fuse: no
Mounting type: claw/screw fastening
Material: metal
Material quality: brass
Surface finish: matt
Device width: 70 mm
Device height: 70 mm
With loop-through function: no
With On/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Transparent: no
Protective contact: yes
Protective conductor contact round: no
Number of active contacts (round): 2
With Signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

ManufacturerJung
HANME1520NAAT
GTIN4011377112933
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)2
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorBrass
Residual current protectionNo
Suitable for protection class (IP)IP20
Device width70 mm
Device height70 mm
Halogen freeYes
With loop-through functionNo
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionNo
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
RAL number (similar)8014
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaYes
TransparentNo
Twisted central insertNo
MaterialMetal
Material qualityBrass
Overvoltage protectionNo
