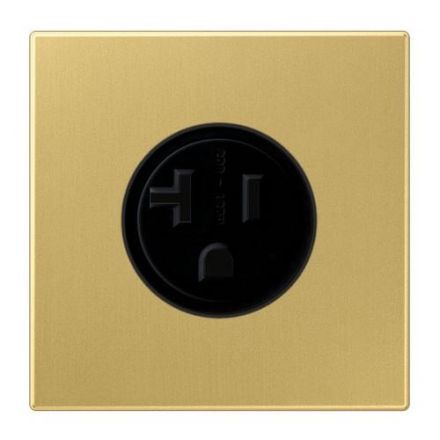

Jung ME2521-20C socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, brass, LS series, brass classic

Jung ME2521-20C socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, brass, LS series, brass classic

In stock

SKU: 183116

Price on request

€58.17

€0

Overview

Socket, US standard NEMA, 20 A 125 V ~, screw terminals, without claws, brass, LS series, brass classic 20 A, 125 V ~, 5-20R, 2-pin. + E
with screw terminals for rigid and flexible conductors up to 4 mm2 according to US-NEMA
Material: brass

Property	Value
Number of units:	1
Color:	Brass
Suitable for protection class (IP):	IP20
Rated voltage:	125 V
Rated current:	20 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	metal
Material quality:	brass
Surface finish:	matt
Device width:	70 mm
Device height:	70 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

HABME 2521-20 C

Manufacturer

HANME2521-20C

GTIN4011377125476

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height70 mm

Halogen freeYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage125V

Rated current20A

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialMetal

Material qualityBrass

Overvoltage protectionNo
