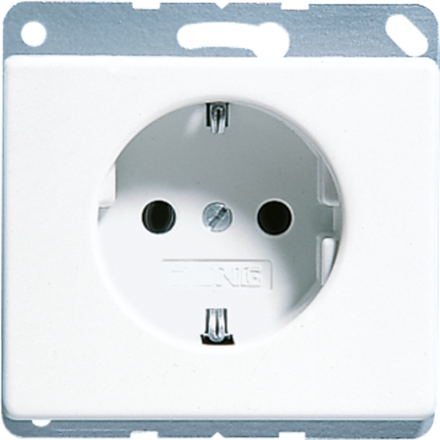

Jung SL520WW SCHUKO socket, 16 A 250 V ~, painted aluminium, SL series, alpine white

Jung SL520WW SCHUKO socket, 16 A 250 V ~, painted aluminium, SL series, alpine white

In stock

SKU: 138301

Price on request

€13.80

€0

Overview

SCHUKO socket, 16 A 250 V ~, painted aluminum, SL series, alpine white SCHUKO® socket, alpine white
with spring terminals for rigid conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0620
Insert can be rotated by 90°
without 'fastening claw': Item no. with 'N', e.g. ..520 N..
Material: painted aluminum
Dimensions (W x H): 70 x 57 mm

Property	Value
RAL number (similar):	9016
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Metal
Material quality:	Aluminium
Surface finish:	matt
Device width:	70 mm
Device height:	57 mm
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorWhite

Manufacturer

HANSL520WW

GTIN4011377151000

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width70 mm

Device height57 mm

Halogen freeYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

RAL number (similar)9016

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialMetal

Material qualityAluminum

Overvoltage protectionNo
