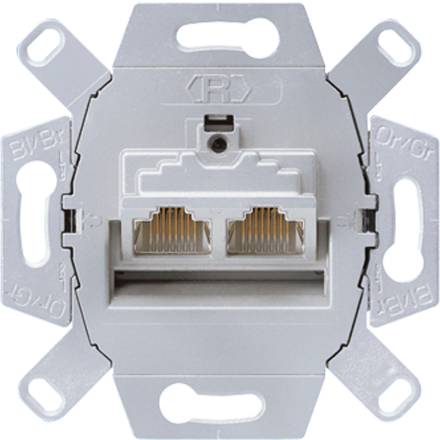

Jung UAE8-8UPOK6 data socket Cat. 6 / Cat. 6A iso for 2 terminals (separate)

In stock
SKU: 138327
€26.30
Into a basketIn the basketGo

Overview

Data socket Cat. 6 / Cat. 6A iso for 2 terminals (separate) (screw fastening, without fastening claws)
for application-neutral networks
shielded LSA connection terminals
flexible cable feed without kinks on all sides
suitable for flush-mounted device sockets
RJ-45 connections for networks according to Cat. 6A, Class EA (10 Gbit/s / 500 MHz),
Corresponds to Cat. 6A in accordance with ISO/IEC 11801 Amendment 2 and Cat. 6A acc. to TIA/EIA-568-B.2-10 2008
suitable for PoE+ in accordance with IEEE 802.3at
1000 mating cycles, RJ 11/12 mismating protected

Property Value
Mounting type: Mounting with screw
Use: other
With dust protection: no
Mounting type: Flush-mounted
With hinged cover: no
Suitable for protection class (IP): IP20
Composition: Base element
Support ring: no
With strain relief: no
Lamp terminal: no
Outlet direction: straight
With sockets/couplings: yes
Suitable for number of sockets/couplings: 2
Sockets shielded: yes
Housing shielded: no

Characteristics

ManufacturerJung
HANUAE8-8UPOK6
GTIN4011377987746
Outlet directionStraight
Mounting typeFastening with screw
Shielded socketsYes
Suitable for number of sockets/couplings2
Suitable for protection class (IP)IP20
Housing shieldedNo
Lamp terminalNo
With bushings/couplingsYes
With hinged lidNo
With dust protectionNo
With strain reliefNo
Mounting typeFlush-mounted
Support ringNo
UseOther
CompilationBasic element
