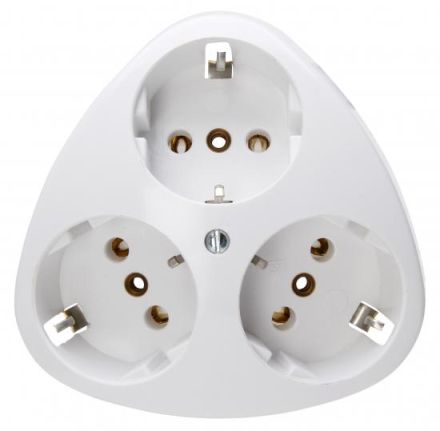

Kopp 100502000 AP 3-way 16A 250V arctic white SCHUKO socket

In stock

SKU: 546723

Price on request

€8.61

€0

Overview

Surface-mounted 3-way protective contact socket in STANDARD design, nominal voltage 250V~, nominal current 16A, protection class IP20, color: arctic white complete housing socket, 3f, arctic white, matt, surface-mounted, horizontal/vertical, IP44,

Property	Value
Color:	white
Version:	Protective contact type F
Designation:	Protective contact socket 3-way square
Gross length (mm):	99
Gross width (mm):	94
Gross height (mm):	48
Material:	Plastic
Halogen-free:	no
Mounting type:	Surface-mounted
Rated voltage (V):	250
Rated current (A):	16
Mounting type:	Mounting with screw
Connection type:	Screw terminal
Overvoltage protection:	no
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Frequency range (Hz):	50...60
Cover:	Complete housing
Can be switched off:	no
Lockable:	no
Number of units:	3
Print/marking:	without
Ejection mechanism:	no
Residual current protection:	no
For 'difficult conditions' (according to VDE):	no
Suitable for protection class (IP):	IP20
With increased contact protection:	no
With fine fuse:	no
With hinged lid:	no
