Kopp 940008004 UP with BS HK07 green SCHUKO socket

Kopp 940008004 UP with BS HK07 green SCHUKO socket

In stock

SKU: 546888

Price on request

€14.88

€0

Into a basketIn the basketGo

Overview

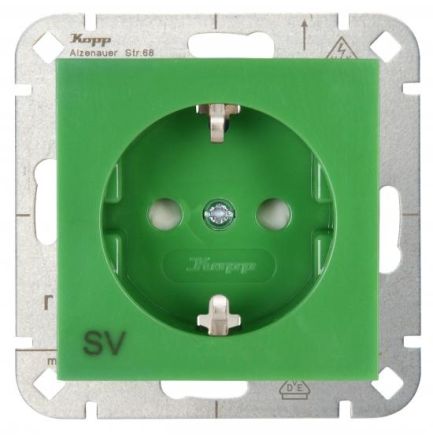

HK07 - flush-mounted protective contact socket with increased contact protection and with 'SV' imprint, color: green

Property	Value
RAL number (similar):	6018
Number of units:	1
Color:	green
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16.00 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	SV
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface protection:	untreated
Surface finish:	glossy
For 'difficult conditions' according to VDE:	no
Device width:	55,000 mm
Device height:	55,000 mm
Device depth:	41,100 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With function lighting:	no
With orientation light:	no
Transparent:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial Treatment:	no
Min. Depth of the device box:	34,000 mm
Metallic color:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no
With built-in Bluetooth speaker:	no
Color of the switch element:	other
With Wi-Fi signal repeater:	no

Characteristics

HABUP with BS HK07 green

Manufacturer

HAN940008004

GTIN4008224641845

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Printing/markingSV

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width55,000 mm

Device height55,000 mm

Device depth41,100 mm

Halogen freeYes

IFTTT support availableNo

Insulated installationNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Min. depth of the device box34,000 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With increased contact protectionYes

Nominal voltage250V

Rated current16.00 A

Surface protectionUntreated

RAL number (similar)6018

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
