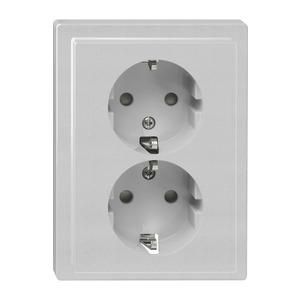

MERTEN MEG2420-5060 double socket SCHUKO BRS plug-in terminals aluminum

MERTEN MEG2420-5060 double socket SCHUKO BRS plug-in terminals aluminum

In stock

SKU: 233895

Price on request

€23.10

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Suitable for installation in a 60 mm installation box. With claw and screw fastening. With plug-in terminals.

Scope of delivery: Complete device with full cover plate.

Material: Brilliant thermoplastic.

Color: aluminum.

Property	Value
Version:	SCHUKO
Number of units:	2.0
Color:	Aluminum
Suitable for protection class (IP):	IP20
Nominal voltage:	250.0 V
Nominal current:	16.0 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
Rated residual current:	0.0 mA
Number of modules (with modular design):	0.0
Number of switchable sockets:	0.0
Device width:	80.0 mm
Device height:	108.0 mm
Device depth:	49.0 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	1.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no
Min. depth of the device box:	40.0 mm

Characteristics

Number of sockets2 sockets

Field of application,

Insert Module TypeSocket

Electrical wiringRecessed Switches

FinishSilver

ColorGrey

Manufacturer

HANMEG2420-5060

GTIN4042811190873

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units2.0

Number of modules (for modular construction)0.0

Number of phases1.00

Number of active contacts (approx.)1.0

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Rated residual current0.0mA

Color

Residual current protectionNo

Frequency50.0Hz

Suitable for protection class (IP)IP20

Device width80.0 mm

Device height108.0 mm

Device depth49.0 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40.0 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

SurfacePainted

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
