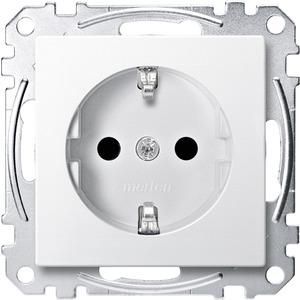

MERTEN MEG2300-0419 SCHUKO socket polar white System M

MERTEN MEG2300-0419 SCHUKO socket polar white System M

In stock

SKU: 161132

Price on request

€5.39

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Features: -Front-mounted retrofitting of QuickFlex additional modules without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Accessories: ==>Extension set surge protection for SCHUKO sockets Sys...

Property	Value
Version:	SCHUKO
RAL number (similar):	9010.0
Number of units:	1.0
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250.0 V
Rated current:	16.0 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Rated residual current:	0.0 mA
Number of modules (with modular construction):	0.0
Number of switchable sockets:	0.0
Device width:	73.0 mm
Device height:	73.0 mm
Device depth:	40.0 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	1.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no
Min. depth of device box:	40.0 mm

Characteristics

ColorWhite

Manufacturer

HANMEG2300-0419

GTIN4042811138165

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)0.0

Number of phases1.0

Number of active contacts (approx.)1.0

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Rated residual current0.0mA

Color

Residual current protectionNo

Frequency50.0Hz

Suitable for protection class (IP)IP20

Device width73.0 mm

Device height73.0 mm

Device depth40.0 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40.0 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

SurfaceUntreated

RAL number (similar)9010.0

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
