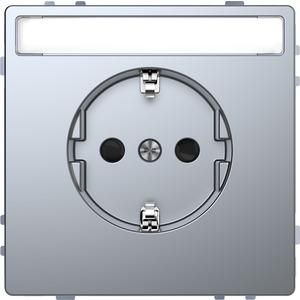

MERTEN MEG2302-6036 SCHUKO socket stainless steel system design

MERTEN MEG2302-6036 SCHUKO socket stainless steel system design

In stock

SKU: 234887

Price on request

€13.25

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Features: -Front-mounted retrofitting of QuickFlex additional modules without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Material: painted thermoplastic. Color: stainless steel.

Property	Value
Version:	SCHUKO
Number of units:	1
Color:	Stainless steel
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	yes
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Number of modules (with modular construction):	0.0
Number of switchable sockets:	0.0
Device width:	71.0 mm
Device height:	71.0 mm
Device depth:	40.0 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	1.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no
Min. depth of device box:	40.0 mm

Characteristics

Manufacturer

HANMEG2302-6036

GTIN4042811196493

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)0.0

Number of phases1.0

Number of active contacts (approx.)1.0

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width71.0 mm

Device height71.0 mm

Device depth40.0 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40.0 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfacePainted

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
