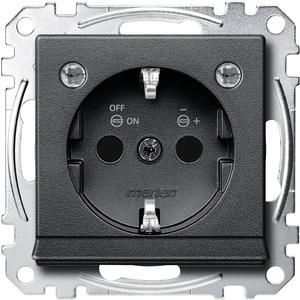

MERTEN MEG2304-0414 SCHUKO socket anthracite System M

In stock
SKU: 161112
€45.85
Into a basketIn the basketGo

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Warm white LEDs illuminate an area below the socket. The illuminated area can be optimally adjusted by adjusting the light output. In the dark, the LED lighting switches on automatically and off again when the ambient light is sufficient. The brightness threshold can be conveniently set from the front and without dismantling the central plate. The automatic function can also be switched off on the central plate so that the lighting remains off, e.g. while you are on holiday. Features: -With integrated QuickFlex module. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. LED power consumption: 1.7VA (0.35W active power). LED service life: > 50,000 hours.

Material: Thermoplastic, matt finish.

Color: anthracite.

Property Value
Version: SCHUKO
RAL number (similar): 7024.0
Number of units: 1.0
Color: anthracite
Suitable for protection class (IP): IP20
Nominal voltage: 250.0 V
Rated current: 16.0 A
Lockable: no
With increased contact protection: yes
With hinged lid: no
Mounting type: Flush-mounted
Text field/labeling area: no
Frequency: 50.0 Hz
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Printing/marking: other
Connection type: Plug-in terminal
With fine fuse: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: matt
Number of switchable sockets: 0.0
Device width: 73.0 mm
Device height: 73.0 mm
Device depth: 42.0 mm
Insulated installation: yes
With loop-through function: yes
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: yes
Impact resistance: IK01
Transparent: no
Protective contact: yes
Protective conductor contact round: no
Number of active contacts (round): 3.0
Number of active contacts (flat): 0.0
With signal lamp: yes
Number of phases: 1.0
Antibacterial treatment: no
Min. depth of the device box: 46.0 mm

Characteristics

ColorAnthracite
ManufacturerMERTEN
HANMEG2304-0414
GTIN4042811146221
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1.0
Number of phases1.0
Number of active contacts (approx.)3.0
Printing/markingOther
VersionSCHUKO
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
Residual current protectionNo
Frequency50.0Hz
Suitable for protection class (IP)IP20
Device width73.0 mm
Device height73.0 mm
Device depth42.0 mm
Halogen freeYes
Insulated installationYes
Min. depth of the device box46.0 mm
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingYes
With signal lampYes
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250.0V
Rated current16.0A
SurfaceUntreated
RAL number (similar)7024.0
Impact resistanceIK01
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
