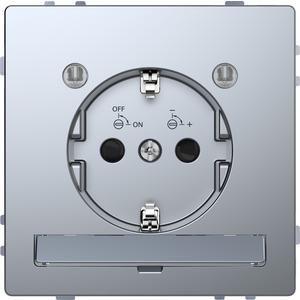

MERTEN MEG2304-6036 SCHUKO socket stainless steel system design

MERTEN MEG2304-6036 SCHUKO socket stainless steel system design

In stock

SKU: 234867

Price on request

€47.33

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Warm white LEDs illuminate an area below the socket. The illuminated area can be optimally adjusted by adjusting the light output. The LED lighting switches on automatically in the dark and switches off again when the ambient light is sufficient. The brightness threshold can be conveniently set from the front and without dismantling the central plate...

Property	Value
Version:	SCHUKO
Number of units:	1
Color:	Stainless steel
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Number of switchable sockets:	0.0
Device width:	76.0 mm
Device height:	76.0 mm
Device depth:	53.0 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	yes
Impact resistance:	IK01
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	3.0
Number of active contacts (flat):	0.0
With signal lamp:	yes
Number of phases:	1.0
Antibacterial treatment:	no
Min. depth of the device box:	46.0 mm

Characteristics

Manufacturer

HANMEG2304-6036

GTIN4042811198275

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1.0

Number of active contacts (approx.)3.0

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width76.0 mm

Device height76.0 mm

Device depth53.0 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box46.0 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingYes

With signal lampYes

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfacePainted

Impact resistanceIK01

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
