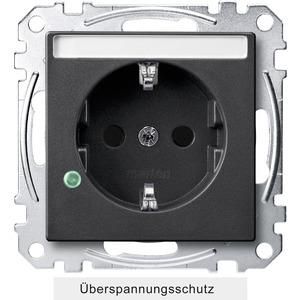

MERTEN MEG2305-0414 SCHUKO socket anthracite System M

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). The integrated surge protection module protects devices connected to the socket from voltage spikes in the network. The module also protects sockets that are within a radius of 5 m on the same circuit. With visual and acoustic fault indication: After an overvoltage, the green control LED goes out and a signal tone sounds when the plug is plugged in. Properties: -With integrated QuickFlex module. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Surge protection device (SPD) in accordance with EN61643-11 Type 3. Nominal voltage Un: AC 230 V. Maximum continuous voltage Uc: AC 255 V. Combined surge Uoc: 6 kV. Protection level Up (LN): < 1.5 kV. Protection level Up (L/N - PE): < 1.5 kV. Nominal leakage current In (8/20): 3 kA. Max. leakage current Imax (8/20): 6 kA. Response time (LN): < 25 ns. Response time (L/N-PE): < 100 ns. Mains-side overcurrent protection: 16 A. Permissible temperature range: -5 degrees C to +40 degrees C.

Accessories:
Labeling strip 230900. Spare part:
Overvoltage protection module MEG2005-0004.

Material: Thermoplastic, matt.

Color: anthracite.
