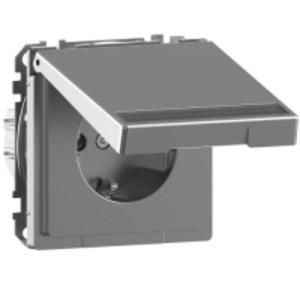

MERTEN MEG2312-6036 System Design stainless steel socket SCHUKO

MERTEN MEG2312-6036 System Design stainless steel socket SCHUKO

In stock

SKU: 763740

Price on request

€18.86

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1. Properties - Front-side retrofitting of QuickFlex additional modules without dismantling the socket. Quick-thread screws for claw fastening. Countersunk claws with return spring. High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Material: painted thermoplastic. Color stainless steel.

Property	Value
Version:	SCHUKO
Number of units:	1.0
Color:	Stainless steel
Suitable for protection class (IP):	IP20
Rated voltage:	250.0 V
Rated current:	16.0 A
Lockable:	no
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of switchable sockets:	0.0
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	0.0
With signal lamp:	no
Antibacterial treatment:	no
