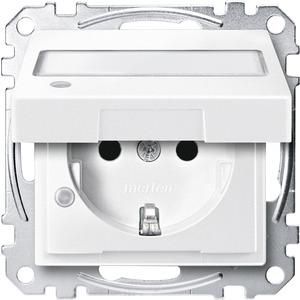

MERTEN MEG2313-0419 SCHUKO socket polar white System M

MERTEN MEG2313-0419 SCHUKO socket polar white System M

In stock

SKU: 234387

Price on request

€22.06

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). The green LED lights up when the mains voltage is applied. Features: -Front-mounted QuickFlex additional modules can be retrofitted without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Accessories: ==>Large S...

Property	Value
Design:	SCHUKO
RAL number (similar):	9010.0
Number of units:	1.0
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250.0 V
Rated current:	16.0 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of switchable sockets:	0.0
Device width:	71.0 mm
Device height:	71.0 mm
Device depth:	47.0 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	yes
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	0.0
Number of active contacts (flat):	0.0
With signal lamp:	yes
Number of phases:	1.0
Antibacterial treatment:	no

Characteristics

ColorWhite

Manufacturer

HANMEG2313-0419

GTIN4042811139711

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of phases1.0

Number of active contacts (approx.)0.0

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width71.0 mm

Device height71.0 mm

Device depth47.0 mm

Halogen freeYes

Insulated installationYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingYes

With hinged lidYes

With orientation lightingNo

With signal lampYes

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

SurfaceUntreated

RAL number (similar)9010.0

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
