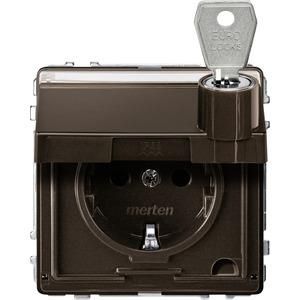

MERTEN MEG2316-7215 SCHUKO socket dark Brazil AQUADESIGN

MERTEN MEG2316-7215 SCHUKO socket dark Brazil AQUADESIGN

In stock

SKU: 234351

Price on request

€70.15

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Features: -Front-side retrofitting of QuickFlex additional modules without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Color: dark brazil.

Property	Value
Version:	SCHUKO
Number of units:	1.0
Color:	other
Suitable for protection class (IP):	IP20
Rated voltage:	250.0 V
Rated current:	16.0 A
Lockable:	yes
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Rated residual current:	0.0 mA
Number of modules (with modular design):	0.0
Number of switchable sockets:	0.0
Device width:	71.0 mm
Device height:	71.0 mm
Device depth:	53.0 mm
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no
Min. depth of device box:	40.0 mm

Characteristics

Manufacturer

HANMEG2316-7215

GTIN4042811139933

LockableYes

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)0.0

Number of phases1.0

Number of active contacts (approx.)2.0

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Rated residual current0.0mA

Color

Residual current protectionNo

Frequency50.0Hz

Suitable for protection class (IP)IP20

Device width71.0 mm

Device height71.0 mm

Device depth53.0 mm

Halogen freeYes

Min. depth of the device box40.0 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

SurfaceUntreated

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
