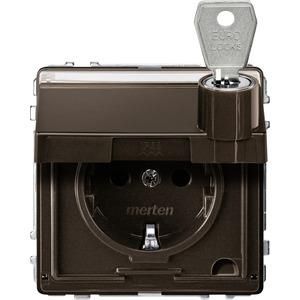

MERTEN MEG2317-7215 SCHUKO socket dark Brazil AQUADESIGN

MERTEN MEG2317-7215 SCHUKO socket dark Brazil AQUADESIGN

In stock

SKU: 234350

Price on request

€70.15

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). Features: -Front-side retrofitting of QuickFlex additional modules without dismantling the socket. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals. Color: dark brazil.

Property	Value
Version:	SCHUKO
Number of units:	1.0
Color:	other
Suitable for protection class (IP):	IP20
Rated voltage:	250.0 V
Rated current:	16.0 A
Lockable:	yes
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	other
With fine fuse:	no
Fastening type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface finish:	glossy
Number of switchable sockets:	0.0
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no
