MERTEN MEG2367-6052 USB A+C 3A Mocca Metallic System Design Socket SCHUKO

MERTEN MEG2367-6052 USB A+C 3A Mocca Metallic System Design Socket SCHUKO

In stock

SKU: 710516

Price on request

€60.06

€0

Overview

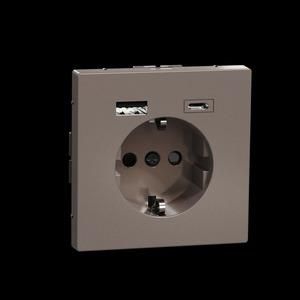

Schuko socket Integrated increased contact protection according to 0620 Part 1. USB 2.0 power supply with two outputs for simultaneous operation/charging of two USB devices with integrated battery. With claw and screw fastening. With plug-in terminals. Mains voltage. Nominal voltage AC 100-240 V, 50-60 Hz. Own consumption 0.15 W. USB outputs. Output voltage DC 5 V +/- 10%. Nominal output current 3000 mA (for both outputs together). Material Thermoplastic painted. Color: Mocca metallic.

Property	Value
Version:	SCHUKO
Number of units:	1.0
Color:	other
Suitable for protection class (IP):	IP20
Rated voltage:	250.0 V
Rated current:	16.0 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 to 60.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	other
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Number of modules (with modular construction):	3.0
Number of switchable sockets:	0.0
Device width:	71.0 mm
Device height:	71.0 mm
Device depth:	44.0 mm
Insulated Installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	yes
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	no

Characteristics

HABUSB A+C 3A Mocha Metallic System Design

Manufacturer

HANMEG2367-6052

GTIN4042811221096

LockableNo

Connection typeOther

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)3.0

Number of phases1.0

Number of active contacts (approx.)2.0

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50.0 to 60.0 Hz

Suitable for protection class (IP)IP20

Device width71.0 mm

Device height71.0 mm

Device depth44.0 mm

Halogen freeYes

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyYes

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250.0V

Rated current16.0A

SurfaceOther

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
