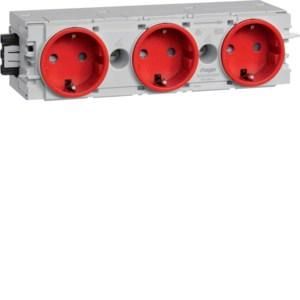

TEHALIT GS30003020 3-way socket red C-profile

In stock

SKU: 155712

Price on request

€61.74

€0

Overview

3-way socket with Wago plug/clamp technology C-profile in traffic red. Channel socket with increased contact protection, pre-wired, can be connected in series using a 3-pin plug connector system with quick fastening for device installation system with C-profile. Cable connection via plug-in terminals 1.5 - 2.5 mm² or via reverse polarity protected connector system.

Property	Value
Version:	SCHUKO
RAL number (similar):	3020
Number of units:	3
Color:	red
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Device installation duct
Text field/labeling area:	yes
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	additional safety supply (red)
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular construction):	3
Device width:	180 mm
Device height:	50 mm
Device depth:	61 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK07
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorRed

Way

Manufacturer

HANGS30003020

GTIN4012740851381

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units3

Number of modules (for modular construction)3

Number of phases1

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width180 mm

Device height50 mm

Device depth61 mm

Halogen freeYes

Insulated installationYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeDevice installation channel

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)3020

Impact resistanceIK07

Protective contactYes

Protective conductor contact roundNo

Special power supplyAdditional safety supply (red)

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
