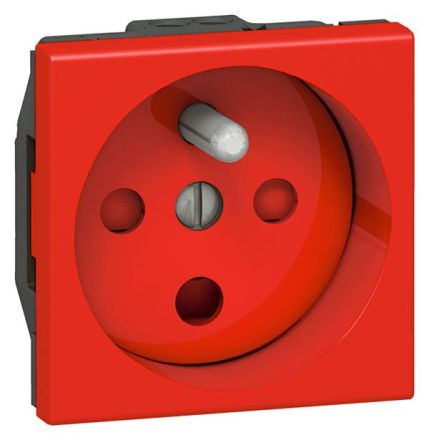

Legrand 077114 socket MOSAIC French coded 2mod rt, (red)

Legrand 077114 socket MOSAIC French coded 2mod rt, (red)

In stock

SKU: 240163

Price on request

€13.44

€0

Into a basketIn the basketGo

Overview

French standard (SK), with increased contact protection, cannot be confused, colour: red

Property	Value
RAL number (similar):	3020
Number of units:	1
Colour:	red
Suitable for protection class (IP):	IP41
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Module carrier
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	additional safety supply (red)
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	snap-on fastening
Material:	plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of modules (with modular construction):	2
Device width:	45 mm
Device height:	45 mm
Device depth:	37 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Insert Module TypeLight switch covers

ColorRed

Manufacturer

HAN077114

GTIN3245060771140

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)2

Number of phases1

Number of active contacts (approx.)1

Surface finishGlittering

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP41

Device width45 mm

Device height45 mm

Device depth37 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeModule carrier

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)3020

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundYes

Special power supplyAdditional safety supply (red)

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
