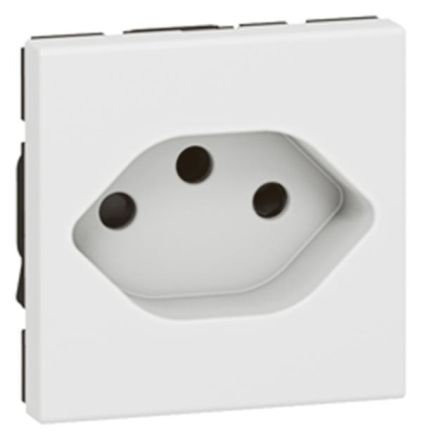

Legrand 077506 socket Switzerland Type13 2-module white, (white)

In stock
SKU: 240202
€12.47
Into a basketIn the basketGo

Overview

Swiss standard type 13 (SL), with increased contact protection, color: white

Property Value
Version: Swiss standard type 13
RAL number (similar): 9003
Number of units: 1
Color: white
Suitable for protection class (IP): IP40
Nominal voltage: 250 V
Nominal current: 10 A
Lockable: no
With increased contact protection: no
With hinged lid: no
Mounting type: Module carrier
Text field/labeling area: no
Frequency: 50 to 60 Hz
Ejection mechanism: no
Halogen-free: yes
Overvoltage protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Print/marking: other
Connection type: Plug-in terminal
With fine fuse: no
Mounting type: Snap-on fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: glossy
Number of modules (with modular construction): 2
Device width: 45 mm
Device height: 45 mm
Device depth: 26.7 mm
Insulated installation: no
With loop-through function: yes
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Impact resistance: IK04
Transparent: no
Protective contact: yes
Protective conductor contact round: yes
Number of active contacts (round): 1
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

Insert Module TypeLight switch covers
ColorWhite
ManufacturerLEGRAND
HAN077506
GTIN3245060775063
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of modules (for modular construction)2
Number of phases1
Number of active contacts (approx.)1
Printing/markingOther
Surface finishGlittering
Ejection mechanismNo
Mounting typeSnap-on fastening
ColorWhite
Residual current protectionNo
Frequency50 to 60 Hz
Suitable for protection class (IP)IP40
Device width45 mm
Device height45 mm
Device depth26.7 mm
Halogen freeYes
Insulated installationNo
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionNo
Mounting typeModule carrier
Nominal voltage250V
Rated current10A
SurfaceUntreated
RAL number (similar)9003
Impact resistanceIK04
Protective contactYes
Protective conductor contact roundYes
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
