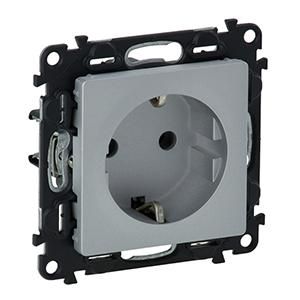

Legrand 753309 socket SCHUKO Valena Life alu, (aluminium)

Legrand 753309 socket SCHUKO Valena Life alu, (aluminium)

In stock

SKU: 240253

Price on request

€3.97

€0

Overview

Valena Life earthed socket 16A, including cover, with increased contact protection (child safety lock), and screwless connection terminals, completely encapsulated and insulated insert and double-tooth spreading claws for more hold in the flush-mounted box. Color: aluminum

Property	Value
RAL number (similar):	7040
Number of units:	1
Color:	Aluminum
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
Device width:	74.7 mm
Device height:	74.7 mm
Device depth:	40 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Insert Module TypeLight switch covers

Manufacturer

HAN753309

GTIN3414970574954

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)1

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width74.7 mm

Device height74.7 mm

Device depth40 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfacePainted

RAL number (similar)7040

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

Legrand 753309 socket SCHUKO Valena Life alu, (aluminium)

Price on request

€3.97

€0

Into a basketIn the basketGo
