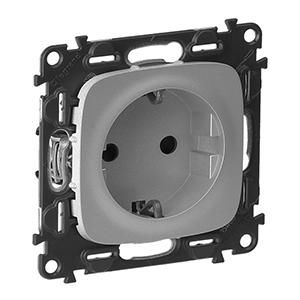

Legrand 754887 socket SCHUKO Valena Allure alu, (aluminium)

Legrand 754887 socket SCHUKO Valena Allure alu, (aluminium)

In stock

SKU: 240263

Price on request

€8.26

€0

Overview

16A protective contact socket including cover for the VALENA ALLURE switch range, with increased contact protection (child safety lock) and screwless connection terminals, completely encapsulated and insulated insert and double-tooth spreading claws for more hold in the flush-mounted box, color: aluminum

Property	Value
RAL number (similar):	7040
Number of units:	1
Color:	Aluminum
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
Device width:	74.7 mm
Device height:	74.7 mm
Device depth:	39.6 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Insert Module TypeLight switch covers

Manufacturer

HAN754887

GTIN3414970480552

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)1

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width74.7 mm

Device height74.7 mm

Device depth39.6 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfacePainted

RAL number (similar)7040

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
