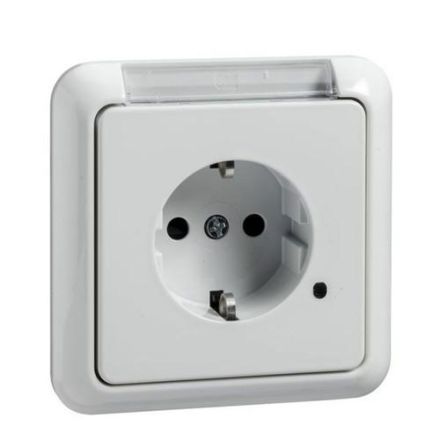

ELSO 225304 socket LED light 16A FASHION pure white

ELSO 225304 socket LED light 16A FASHION pure white

In stock

SKU: 433437

Price on request

€47.10

€0

Overview

ELSO FASHION socket with LED orientation lighting and increased contact protection (child protection) Color: pure white white LED, full functionality of the socket, twilight sensor for switching off the LED during the day, installation in switch junction boxes with 60 mm installation depth recommended, with the colors offered the socket can also be used with other switch programs as a complete device

Property	Value
Version:	SCHUKO
RAL number (similar) :	9010
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Plug terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Device width:	76 mm
Device height:	78 mm
Device depth:	67 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	yes
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	1
With signal lamp:	yes
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN225304

GTIN4013984190397

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Device width76 mm

Device height78 mm

Device depth67 mm

Halogen freeYes

Insulated installationYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingYes

With signal lampYes

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
