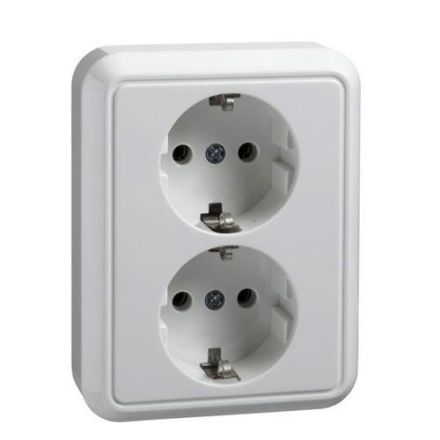

ELSO 235404 socket 2-way 16A semi-recessed FASHION pure white

ELSO 235404 socket 2-way 16A semi-recessed FASHION pure white

In stock

SKU: 432484

Price on request

€8.10

€0

Overview

2-way socket, color: pure white, semi-recessed, cover 80x104x27mm, made of thermoplastic for 55 installation boxes, protective contact sockets 16 A 250V AC for flush mounting, protection class IP 20, screw terminals clamping range for copper conductors 1.5mm and 2.5 mm, for the secure connection of aluminum conductors 2.5 mm without pre-treatment

Property	Value
Version:	SCHUKO
RAL number (similar) :	9010
Number of units:	2
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	screw terminal
With fine fuse:	no
Fastening type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface:	untreated
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Device width:	109 mm
Device height:	104 mm
Device depth:	55 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK02
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN235404

GTIN4013984143454

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units2

Number of phases1

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Device width109 mm

Device height104 mm

Device depth55 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Impact resistanceIK02

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
