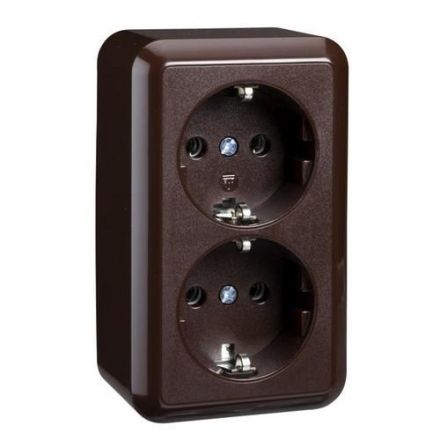

ELSO 395402 surface-mounted socket 2-way 16A CONTURA brown

ELSO 395402 surface-mounted socket 2-way 16A CONTURA brown

In stock

SKU: 432762

Price on request

€8.41

€0

Overview

2-way socket, 16 A 250 V AC, color: brown, for surface mounting, protection class IP 20, with base plate, suitable for mounting on flammable surfaces. Screw terminals: clamping range for copper conductors 1.5 mm and 2.5 mm, for the secure connection of aluminum conductors 2.5 mm without pre-treatment.

Property	Value
Design:	SCHUKO
RAL number (similar):	8016
Number of units:	2
Color:	brown
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Surface-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Screw terminal
With fine fuse:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Device width:	63 mm
Device height:	105 mm
Device depth:	43 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK02
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

ColorBrown

Manufacturer

HAN395402

GTIN4013984114768

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units2

Number of phases1

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Frequency50Hz

Device width63 mm

Device height105 mm

Device depth43 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Impact resistanceIK02

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
