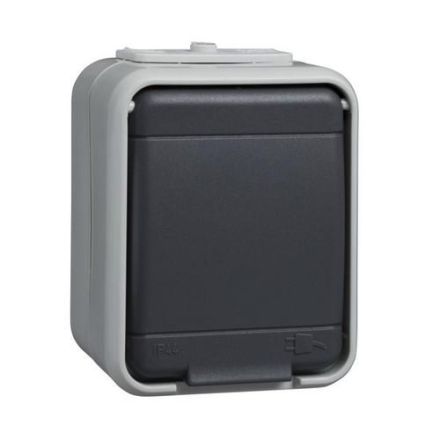

ELSO 445209 16A AquaTop light/basalt grey socket

In stock

SKU: 433458

Price on request

€8.12

€0

Overview

Single socket with increased contact protection (child protection) Color: light/basalt gray, earthed sockets 16 A 250 V AC for surface mounting, protection class IP 44, with two cable entries, plug-in terminals: clamping range for copper conductors 1.5 mm and 2.5 mm, connection terminals according to 0620

Property	Value
Version:	SCHUKO
RAL number (similar) :	7035
Number of units:	1
Color:	gray
Suitable for protection class (IP):	IP44
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Surface-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Plug-in terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
For 'difficult conditions' (according to VDE):	no
Device width:	65 mm
Device height:	81 mm
Device depth:	53 mm
Insulated installation:	no
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN445209

GTIN4013984184334

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Printing/markingWithout imprint

Version

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Frequency50Hz

Device width65 mm

Device height81 mm

Device depth53 mm

Halogen freeYes

Insulated installationNo

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeSurface-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
