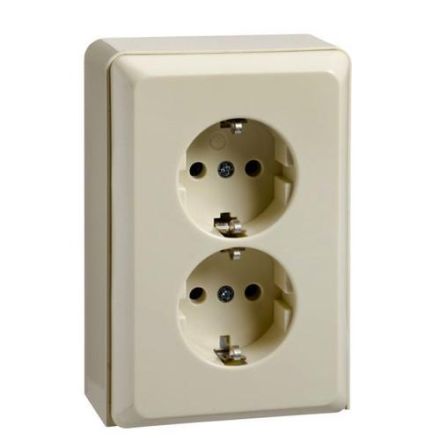

ELSO 515520 socket twisted 2-way 16A RENOVATION pearl white

ELSO 515520 socket twisted 2-way 16A RENOVATION pearl white

In stock

SKU: 433131

Price on request

€11.21

€0

Overview

Socket in the device carrier for duct connection or end plate 16 A 250 V AC, 2-way, pre-wired, color: pearl white, screw terminals: clamping range for two copper conductors 1.5 mm or 2.5 mm each, for the secure connection of untreated aluminum conductors 2.5 mm.

Property	Value
Version:	SCHUKO
RAL number (similar):	1013
Number of units:	2
Color:	cream white (electric white)
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Screw terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Device width:	80 mm
Device height:	100 mm
Device depth:	19 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK02
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HAN515520

GTIN4013984123098

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units2

Number of phases1

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Frequency50Hz

Device width80 mm

Device height100 mm

Device depth19 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Impact resistanceIK02

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
