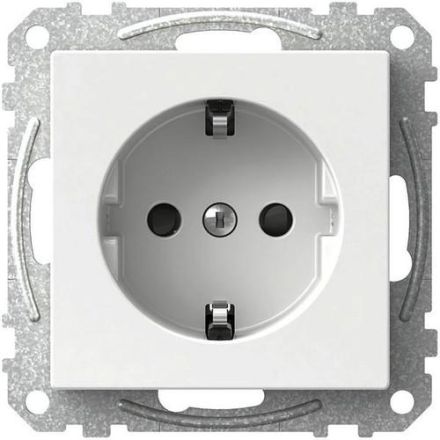

ELSO WDE002176 socket 16A child protection plug Exxact white

ELSO WDE002176 socket 16A child protection plug Exxact white

In stock

SKU: 435174

Price on request

€5.88

€0

Into a basketIn the basketGo

Overview

Socket with child protection 16A plug terminal design Exxact / color: white

Property	Value
Version:	SCHUKO
RAL number (similar) :	9003
Number of units:	1
Color:	white
Suitable for protection class (IP) :	IP21
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
For 'difficult conditions' (according to VDE):	no
Device width:	71 mm
Device height:	71 mm
Device depth:	39.8 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	28 mm

Characteristics

Manufacturer

HANWDE002176

GTIN3606480203268

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Printing/markingWithout imprint

Version

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency60Hz

Device width71 mm

Device height71 mm

Device depth39.8 mm

Halogen freeYes

Insulated installationNo

Min. depth of the device box28 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
