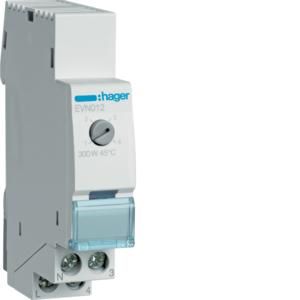

Hager EVN012 remote dimmer 300W universal comfort

In stock
SKU: 156175
€101.40
Into a basketIn the basketGo

Overview

Remote dimmer 300W universal comfort, LED/ESL. Remote dimmer for controlling dimmable energy-saving and LED lamps, incandescent lamps, 230V halogen lamps and low-voltage halogen lamps with wound or electronic transformers. Automatic load detection using detection methods and learning function via the external button or via forced operation with the selector switch on the device. With comfort functions for progressive switching off (good night function), standby or 100% reactivation. Memory function is used to control the last set value when switched on. Control input via phase or neutral conductor possible. With little space requirement and low standby consumption of 0.2W. Remote control of the dimmer using the button is also possible when illuminated. Electronic short circuit and over-temperature protection.

Property Value
Device height: 90 mm
Device width: 17.5 mm
Device depth: 65 mm
Connection type: Screw terminal
Wire cross section: 1.5 to 6 mm²
Mounting type: REG
Dimming phase control: yes
Dimming trailing edge: yes
Color: gray
Suitable for protection class (IP): IP20
Operating method: Rotary/push button
Halogen-free: no
Composition: Basic element
Load type: universal
Series dimmer: yes
Extension input: no
Light value memory: yes
Can be used with button: yes
Can be used with motion detector: no
Can be used with presence detector: no
Can be used with timer: yes
Can be used with radio button: no
Can be used with IR button: no
Mounting type: claw fastening
Material: plastic
Material quality: thermoplastic
Surface: untreated
Surface finish: matt
RAL number (similar): 9001
Frequency: 50 to 60 Hz
Control voltage: 195.5 to 253 V
Transparent: no

Characteristics

Core cross-section1.5 to 6 mm²
ManufacturerHAGER
HANEVN012
GTIN3250617573924
Connection typeScrew terminal
Surface finishFrosted
Operating modeRotary/push button
Mounting typeClaw attachment
Dimming trailing edgeYes
Dimming phase controlYes
ColorGray
Frequency50 to 60 Hz
Suitable for protection class (IP)IP20
Device width17.5 mm
Device height90 mm
Device depth65 mm
Halogen freeNo
Mounting typeREG
Extension inputNo
SurfaceUntreated
RAL number (similar)9001
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
