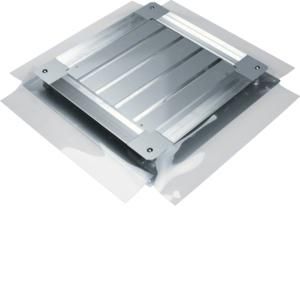

TEHALIT UDB3050080 Underfloor box size 3 50-80

In stock
SKU: 308566
€153.44
Into a basketIn the basketGo

Overview

Universal floor box with base plate size 3 498x498x (50-80) mm. Universal floor box according to DIN EN 50085-1 and DIN EN 50085-2-2 suitable for all duct widths up to nominal size, with flexible film formwork, base plate, assembly protection cover and internal stepless height leveling, acoustically decoupled, cracks in the screed in the installation area are minimized by movable bearings.

Property Value
Duct width: 190 to 340 mm
Side wall material: Plastic
Min. Screed height: 50 mm
Option for decoupling upper part from lower part: yes
Nominal size: 340 mm
Suitable for screed-covered underfloor duct: yes
Suitable for screed-flush closed underfloor duct: no
Leveling range: 50 to 80 mm
Mounting cover holder: yes
Seal installation option: no
Bottom plate: yes
Cover design: universal

Characteristics

ManufacturerTEHALIT
HANUDB3050080
GTIN4012002238035
Cover designUniversal
