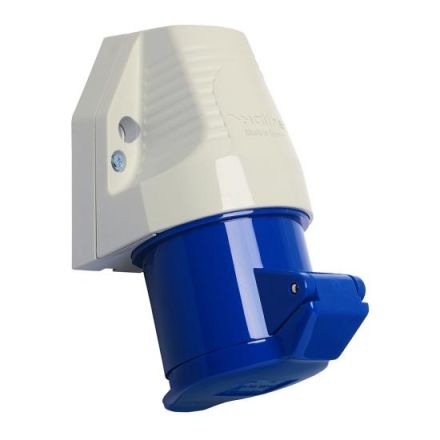

Walther 130306 3x32A 240V wall socket

Walther 130306 3x32A 240V wall socket

In stock

SKU: 486121

Price on request

€23.79

€0

Into a basketIn the basketGo

Overview

WALTHER wall socket 32A 3P 230V 6h IP44, made of PA6 material, with screw connection, and a cable entry at the top, for external mounting

Property	Value
IEC current:	32 A
Number of poles:	3
Protection class (IP):	IP44
Identification color:	blue
Connection technology:	Screw terminal
Design:	Surface-mounted
Voltage according to EN 60309-2:	230 V (50+60 Hz) blue
Time setting:	6 h
Material:	Plastic
Mounting type:	External mounting
Military version:	no
Insulated installation:	yes
UL/CSA current (if UL version required):	30 A
Cable entry:	other

Characteristics

HAB130306 3x32A 240V

Manufacturer

HAN130306

GTIN4015609010356

Connection technologyScrew terminal

Version

Mounting typeExternal fastening

IEC current32 A

Insulated installationYes

Cable entryOther

Identification colorBlue

Military versionNo

Number of poles3

IP protection)IP44

Voltage according to EN 60309-2230 V (50+60 Hz) blue

UL/CSA current rating (if UL version required)30A

Time position6 hours

MaterialPlastic
