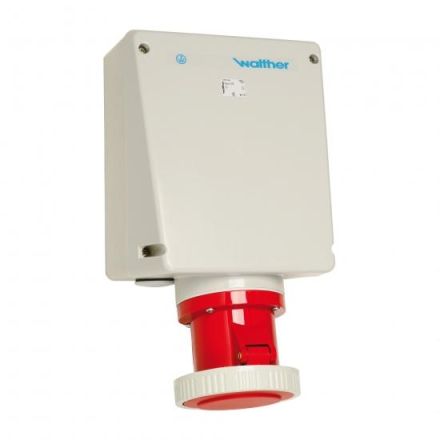

Walther 179 5x125A wall socket

In stock

SKU: 486119

Price on request

€372.28

€0

Overview

WALTHER wall socket 125A 5P 400V 6h IP67, made of PA6 material, with lamellar contact, for high contact pressure and light pull-off force, with 2 M50/M20 cable entries at the top, with 2 M40 cable entries at the bottom, and clamp set 5x50qmm, for internal fastening

Property	Value
IEC current:	125 A
Number of poles:	5
Protection class (IP):	IP67
Identification color:	red
Connection technology:	Screw terminal
Design:	Surface-mounted
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Material:	Plastic
Mounting type:	Internal mounting
Military version:	no
Insulated installation:	yes
UL/CSA current rating (if UL version required):	100 A
Cable entry:	other
