Walther 519 220/380V WD angled 5-pin 16A CEE wall socket

In stock

SKU: 639234

Price on request

€55.68

€0

Overview

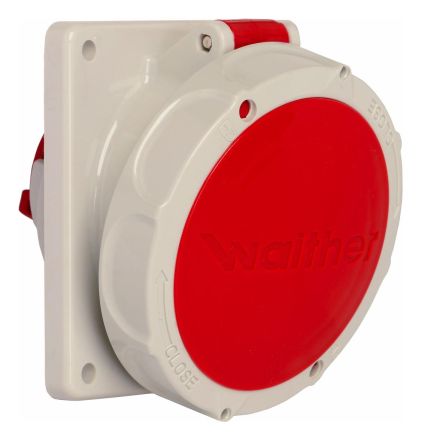

WALTHER surface-mounted socket 16A 5P 400V 6h IP67, angled, made of PA6 material, finger-safe according to BGV A3, soft transition radius from flange to collar, flange dimensions 100x92mm, mounting dimensions 85x77mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	Screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
Protection class (IP):	IP67
Material:	Plastic
Military version:	no
Horizontal hole spacing:	77 mm
Vertical hole spacing:	85 mm
Horizontal flange dimension:	92 mm
Vertical flange dimension:	100 mm
Cable entry:	other
Rated voltage:	346 to 415 V
Rated frequency:	60 Hz
