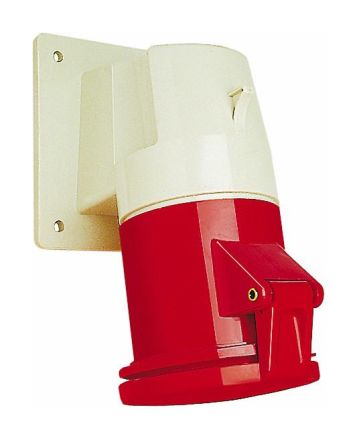

Walther 564 400V WD angled 5-pin 63A CEE wall socket

In stock

SKU: 639231

Price on request

€120.28

€0

Overview

WALTHER surface-mounted socket 63A 5P 400V 6h IP44, angled, made of PA6 material, finger-safe according to BGV A3, with screwed-on flange housing, flange dimensions 107x100mm, fastening dimensions 85x77mm

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	5
Connection technology:	Screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
Protection class (IP):	IP44
Material:	Plastic
Military version:	no
Horizontal hole spacing:	90 mm
Vertical hole spacing:	90 mm
Horizontal flange dimension:	114 mm
Vertical flange dimension:	114 mm
Cable entry:	other
Rated voltage:	346 to 415 V
Rated frequency:	60 Hz
