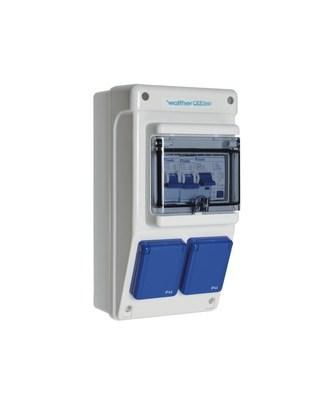

Walther 6590006 RAL 7035 plastic socket combination

In stock
SKU: 486483
€282.83
Into a basketIn the basketGo

Overview

WALTHER plastic socket combination, according to IEC 61439-part 1 and 3, housing (659) made of silicone and halogen-free PC/ABS, color: similar to RAL 7035 -light gray-, with transparent cover that snaps into place at the top, protection class II, flammability class V0, protection type: IP44, size approx.: 237 x 125 x 124mm / HBT, connection:, 2 knockouts at the top and bottom M20/M25, 1 connection up to 6qmm 3P, outlets/fuse:, 1 residual current device (RCD) 2P 25A/30mA -A-, 2 earthed sockets 16A 3P 230V, each with 1 circuit breaker (MCB) 1P 16A -C-, socket combination according to DIN EN 61439:, individually tested, wired ready for connection, rated current: 25A

Property Value
CEE socket - 16 A: without
CEE socket - 32 A: without
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 2
Width: 125 mm
Height: 237 mm
Depth: 124 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Supply/connection option: 1 line (spur line)
Handling: Wall mounting
Housing material: Plastic
Protection class (IP): IP44
Military version: no
Number of circuit breakers: 2
Type of mains connection: other
Color: gray

Characteristics

Number of SCHUKO sockets2
HABRAL 7035 plastic
ManufacturerWalther
HAN6590006
GTIN4015609308200
Width125 mm
ColorGray
Height237 mm
Military versionNo
IP protection)IP44
Depth124 mm
Housing materialPlastic
