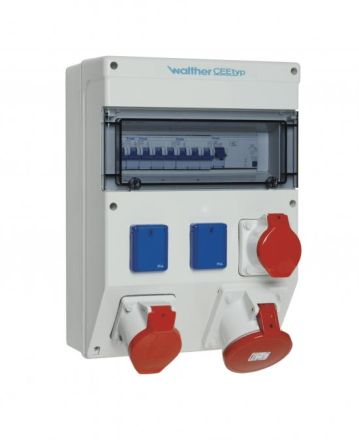

WALTHER plastic socket combination, according to IEC 61439-part 1 and 3, housing (682) made of silicone and halogen-free PC/ABS, color: similar to RAL 7035 -light gray-, with transparent cover that snaps into place at the top, protection class II, flammability class V0, protection type: IP44, size approx.: 404 x 290 x 171mm / HBT, connection:, 3 knockouts at the top and bottom M40/M50, 1 terminal set K25 10P, outlets/fuse:, 1 residual current device (RCD) 4P 63A/30mA -A-, 1 CEE wall socket angled 63A 5P 400V 6h, 1 CEE wall socket straight 32A 5P 400V 6h, with circuit breaker (MCB) 3P 32A -C-, 1 CEE surface-mounted socket straight 16A 5P 400V 6h , with 1 circuit breaker (MCB) 3P 16A -C-, 2 earthed sockets 16A 3P 230V , each with 1 circuit breaker (MCB) 1P 16A -C- , socket combination according to DIN EN 61439:, individually tested, wired ready for connection, rated current: 63A
| Property | Value |
| CEE socket - 16 A: | 1x16A5p400V |
| CEE socket - 32 A: | 1x32A5p400V |
| CEE socket - 63 A: | 1x63A5p400V |
| CEE socket - 125A: | without |
| Number of SCHUKO sockets: | 2 |
| Width: | 290 mm |
| Height: | 404 mm |
| Depth: | 171 mm |
| Fuse protection: | LS switch |
| FI circuit breaker: | FI with IFN 0.03 A (standard) |
| Supply/connection option: | 2 lines (ring line/for looping through) |
| Handling: | Wall mounting |
| Housing material: | Plastic |
| Protection class (IP): | IP44 |
| Military version: | no |
| Number of circuit breakers: | 4 |
| Type of power connection: | other |
| Color: | gray |
