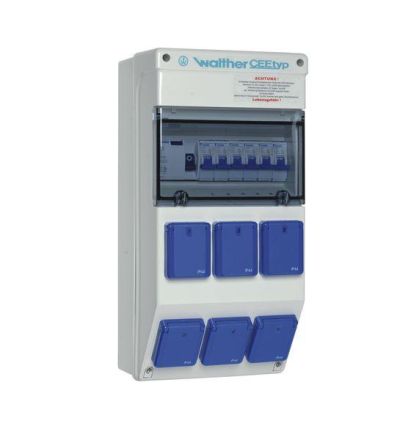

Walther 6980003 CEE socket combination

In stock
SKU: 763850
€557.89
Into a basketIn the basketGo

Overview

WALTHER plastic socket combination, in accordance with IEC 61439-part 1 and 3, housing (698) made of silicone and halogen-free PC/ABS, color: similar to RAL 7035 -light gray-, with transparent cover that snaps into place at the top, protection class II, flammability class V0, protection type: IP44, size approx.: 370 x 183 x 152mm / HBT, connection:, 2 knockouts at the top and bottom M25/M32/M40, 1 terminal set K25 10P, outlets/fuse:, 1 residual current device (RCD) 4P 40A/30mA -A-, 6 earthed sockets 16A 3P 230V, each with 1 circuit breaker (MCB) 1P 16A -C-, socket combination in accordance with DIN EN 61439:, individually tested, wired ready for connection, rated current: 32A

Property Value
CEE socket - 16 A: without
CEE socket - 32 A: without
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 6
Width: 183 mm
Height: 370 mm
Depth: 152 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Supply/connection option: 2 lines (ring line/for looping through)
Handling: Wall mounting
Housing material: Plastic
Protection class (IP): IP44
Military version: no
Number of circuit breakers: 6
Type of mains connection: other
Color: gray

Characteristics

Number of SCHUKO sockets6
HAB6980003
ManufacturerWalther
HAN6980003
GTIN4015609183401
Width183 mm
ColorGray
Height370 mm
Military versionNo
IP protection)IP44
Depth152 mm
Housing materialPlastic
