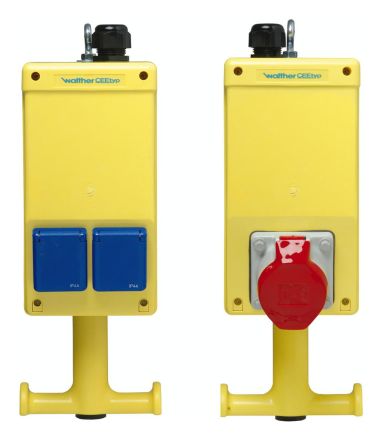

Walther 6H00102 plastic hanging socket combination

In stock
SKU: 710666
€244.75
Into a basketIn the basketGo

Overview

WALTHER plastic hanging socket combination, according to IEC 61439-part 1 and 3, housing (6H0) made of silicone and halogen-free PC/ABS, color: RAL 1016/9005 -sulfur yellow/jet black-, with 2 hanging eyes, with handle hook at the bottom, protection class II, protection type: IP44, size approx.: 374 x 136 x 195mm / HBT, connection:, 1 cable screw connection M25 at the top, 1 connection up to 6qmm 5P, outlets/fuse:, 1 CEE mounting box straight 16A 5P 400V 6h, 2 earthed sockets 16A 3P 230V, hanging socket combination according to DIN EN 61439:, individually tested, wired ready for connection, rated current: 16A

Property Value
CEE socket - 16 A: 1x16A5p400V
CEE socket - 32 A: without
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 2
Width: 136 mm
Height: 374 mm
Depth: 195 mm
Protection: without
FI circuit breaker: without
Feed/connection option: 1 line (spur line)
Handling: can be suspended
Housing material: Plastic
Protection class (IP): IP44
Military version: no
Type of power connection: other
Color: yellow

Characteristics

Number of SCHUKO sockets2
HAB6H00102 Plastic
ManufacturerWalther
HAN6H00102
GTIN4015609526451
Width136 mm
ColorYellow
Height374 mm
Military versionNo
IP protection)IP44
Depth195 mm
Housing materialPlastic
