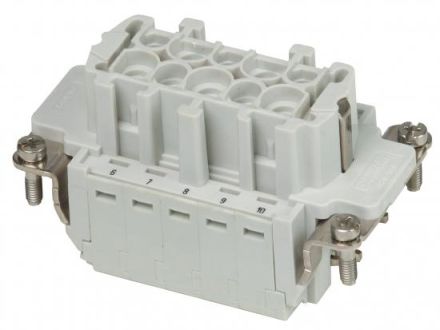

Walther 71011004 B10 socket insert

In stock
SKU: 485801
€13.32
Into a basketIn the basketGo

Overview

WALTHER socket insert, series B10, with push-in connection, connection cross-section 0.5-2.5qmm (20-14AWG)

Property Value
Number of poles: 10
Rated current In: 16 A
Rated impulse voltage: 6 kV
With protective conductor: yes
Connectable conductor cross-section stranded: 4 mm²
Material of Connector insert: Thermoplastic
Rated voltage: 500 V
Overvoltage category: III
Contact design: Socket
Pollution level: 3
Material of the contact: Other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule: 4 mm²
Contact insert without contacts: no
Material of the contact coating: Silver
Design of the electrical connection: Plug-in terminal connection
With wire protection: no
Flammability class of the insulating material according to UL 94: V0
Material of the contact insert: other
Number of power contacts: 10
Operating temperature: -40 to 125 °C
Min. number of mating cycles: 500
Width: 64 mm
Height: 35.5 mm
Depth: 34 mm

Characteristics

Rated surge voltage6 kV
HAB71011004 B10
ManufacturerWalther
HAN71011004
GTIN4015609603152
Connectable conductor cross-section stranded4 mm²
Design of the electrical connectionPlug-in terminal connection
Rated voltage500V
Rated current In16A
Operating temperatur-40 to 125 °C
Width64 mm
Flammability class of the insulating material according to UL 94V0
Height35.5 mm
Number of poles10
Depth34 mm
Degree of contamination3
Overvoltage categoryIII
